Your Panels Come Off Our Floor. Not a Trading Desk.
We run acoustic panel production inside our Haining facility. One raw material door. Two production lines. One shipping bay. You talk to the same people who set the slat spacing and check the felt density.
Why this matters to a buyer:
- Custom specs don't get lost in translation. No factory-hop between middleman and actual producer.
- Quality control happens on our floor. Batch rejection rate logged, not hidden behind a trader's email.
- Lead time is real. We know what's on the line today. We can tell you honestly when your order ships.
CE certified under EN 13986:2004+A1:2015. Certificate No. SC-PSC-4-2026-06-53. Issued by Certification Center LTD, EU Notified Body.
Two Product Lines. One Floor.

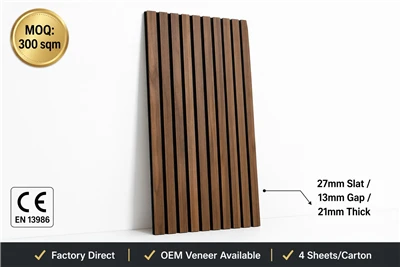

MDF Wood Slat Acoustic Panels
- 27mm slat width. 13mm gap. 9mm PET felt backing.
- Standard sheet: 2400 x 600mm. Total thickness 21mm.
- MDF density: 700-800 kg/m³. E0 formaldehyde class available.
- Surface: Natural wood veneer (oak, walnut, ash, teak) or melamine.
- NRC: 0.50-0.60 direct mount. 0.85-0.95 with 45mm air gap + mineral wool.
- Installation: Direct screw through felt. Z-clip system. Construction adhesive.
PET Felt Acoustic Panels
- 100% polyester fiber. 60-90% post-consumer recycled content.
- Needle-punched. Thermally bonded. Zero chemical binders.
- Thickness: 9mm, 12mm, 24mm. Custom thickness on request.
- Standard sheet: 1220 x 2420mm. Custom dimensions available.
- Density: 150-230 kg/m³. Higher density = better mid-high frequency absorption.
- NRC: 9mm ~0.45. 12mm ~0.60. 24mm ~0.80. Add 50mm air gap for +0.15-0.20 boost.
- Edge profiles: Square, bevelled, rounded. CNC-cut custom shapes available.
-
![Acoustic Wall Panel for Home Theater]()
Acoustic Wall Panel for Home TheaterEastopo’s MDF+PET composite acoustic panels are engineered for superior broadband noise control. With an NRC rating up to 0.95, these panels utilize precision-perforated medium-density fiberboard and -
![Acoustic Panel for Office]()
Acoustic Panel for OfficeThe combination of MDF wooden slats and acoustic felt (PET basis) effectively absorb the echoes in the working areas while enhancing the visual aesthetics.The surface can be customized with wooden -
![Acoustic Ceiling Panel]()
Acoustic Ceiling PanelAcoustic ceiling panel actually is related to its wall panel. Width: 20cm/30cm/40cm/50cm/60cmLength: 120cm/240cm/260cm/290cmThickness: 18mm/21mm -
![Acoustic Art Panel]()
Acoustic Art PanelEach pattern is composed of eco friendly wooden fibers with high density and formaldehyde free.The polyester back felt as the holding material for the wooden slats added extra sound absorption -
![Walnut Acoustic Panel]()
Walnut Acoustic PanelWalnut wood veneer acoustic panels are most popular pattern according to our sales data.The surface color from light to medium til dark are all available to match any room tone.We offer custom sizes. -
![Acoustic Wall Panel Wood]()
Acoustic Wall Panel WoodNatural wood veneer acoustic panels feature an authentic wood surface, offering a texture that is distinct from plastic or paper-based finishes. White/Black/Grey/Smoke/Oiled Oak, Teak and Walnut -
![Acoustic Wood Slat Panel]()
Acoustic Wood Slat PanelThere are many acoustic panel types, wood slat acoustic panel is the combination of MDF, wood veneer and PET felt, it can be applied indoor on wall and ceiling with oak, teak or walnut surface -
![Decorative Acoustic Sound Panel]()
Decorative Acoustic Sound PanelBesides being soundproof, the acoustic panel's decorative look makes it a popular and affordable choice, with over a dozen surface finishes available including wood, paper, cloth and metallic veneers. -
![Acoustic Slat Wall Panel]()
Acoustic Slat Wall PanelAs a sound insulation material, PET felt comes in a wide range of vibrant colors to complement wood slat finishes. Custom colors are also available upon request. -
![Acoustic Sound Dampening Panel]()
Acoustic Sound Dampening PanelAcoustic sound dampening panels are the unsung heroes of comfortable living, tackling the invisible enemy of modern architecture: hard, reflective surfaces. In today’s open-plan homes and offices,
Technical Specs
| Property | MDF Wood Slat Panel | PET Felt Panel |
|---|---|---|
| Material | E0 MDF + natural wood veneer + 9mm PET felt | 100% polyester fiber (60-90% recycled) |
| Standard Size | 600 x 2400 x 21mm | 1220 x 2420 x 9/12/15/24mm |
| Slat / Gap | 27mm / 13mm | N/A (solid sheet) |
| NRC (Direct Mount) | 0.50 - 0.60 | 0.45 (9mm) / 0.60 (12mm) / 0.80 (24mm) |
| NRC (with Air Gap) | 0.85 - 0.95 (45mm gap + mineral wool) | 0.65-0.80+ (50mm gap) |
| Fire Rating | B-s1,d0 (EN 13501-1) / Class A (ASTM E84 on request) | B-s1,d0 (EN 13501-1) |
| Test Standard | EN 13986:2004+A1:2015 | EN 13986:2004+A1:2015 |
| Weight | 8.5 - 10 kg/m² | ~1.4 kg/m² (9mm) / ~2.8 kg/m² (24mm) |
| Custom Size | Height up to 3200mm. Width up to 1200mm. | Up to 3000 x 1500mm. Custom shapes via CNC. |
Full test reports from ILAC-MRA accredited labs available on request. NRC values measured per ISO 354 / ASTM C423.
See It Made. Not Just Shipped.
Watch our MDF wood slat acoustic panels come off the production line. OEM and ODM orders run on the same floor.
Three-phase production: precision MDF grooving, natural wood veneer lamination, and PET felt backing heat-pressed in one continuous workflow. Filmed on our factory floor.
Where It's Specified
Open-plan office fit-outs — speech privacy and zoning
Education facilities — classroom acoustics, lecture halls, libraries
Hospitality — hotel lobbies, restaurant ceiling baffles, bar areas
Healthcare — waiting rooms, corridors, consultation spaces
Commercial retail — showroom walls, feature displays
Performing arts — theaters, rehearsal rooms, recording studios
Residential developments — apartment common areas, home cinema builds
Manufacturing Process
Wood Slat Line: E0 MDF sheet → precision grooving (CNC-controlled, 0.2mm tolerance) → veneer lamination → PET felt backing heat-pressed → individual PE wrap → 4 sheets/carton.
PET Felt Line: Recycled polyester fiber → needle-punching → thermal bonding (no chemical binders) → density QC check → precision cutting → edge profiling → PE wrap → 4 sheets/carton.
Quality Control
Every production batch undergoes: dimensional tolerance check (±0.5mm), visual surface inspection, felt density verification, and random acoustic spot-testing. Batch rejection records maintained and available for audit. Raw material traceability: MDF from certified mills, PET fiber from GRS-tracked supply chain.
Certifications
CE Certificate: SC-PSC-4-2026-06-53. Issued 25.06.2026. Valid until 24.06.2029.
Standard: EN 13986:2004+A1:2015. AVCP System 4.
Issuing Body: Certification Center LTD, Riga, Latvia (EU Notified Body).
Coverage: 16 product models across MDF wood slat and PET felt ranges.
Shipping & Packaging
- Each sheet individually PE-wrapped. 4 sheets per export-grade carton with corner protectors.
- Pallets: ISPM 15 heat-treated. Strapped and labelled per container loading plan.
- MOQ: 300 sqm per order. Mixed products allowed within MOQ.
- Container: 20GP or 40HQ. Exact loading quantity varies by panel dimensions and thickness.
- Ports: Ningbo / Shanghai departure.
- Incoterms: EXW, FOB, CIF. Ocean transit: 25-45 days to EU/UK ports.
Start With a Spec. Not a Price List.
Tell us your project requirements: panel type, dimensions, quantity, target NRC or fire class, and delivery port. We'll return a factory-direct quote with a lead time that reflects what's actually on our production schedule—not a number from a trading desk. Sample-to-contract path available. Freight collect on standard samples, cost rebated upon order confirmation.
