What You're Buying: One Sheet, Stripped Down

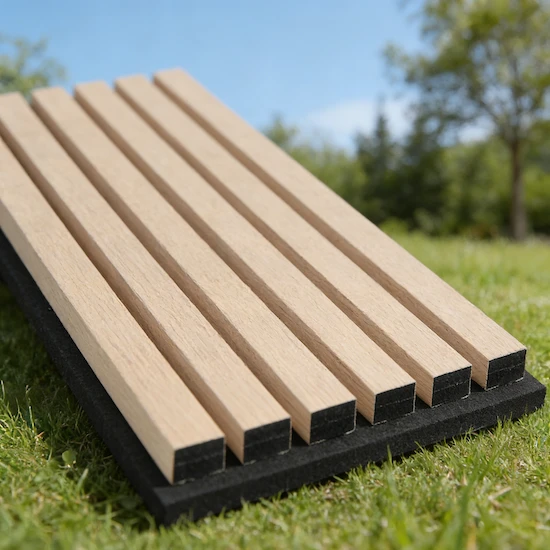

A sheet comes off our MDF line in Haining measuring 2400 x 600 x 21mm and weighing about 12kg. 27mm slats. 13mm gap of black PET felt showing between them. 9mm of PET backing holding the slats together. That is the whole product: MDF, real wood veneer and acoustic felt - nothing else in the build.

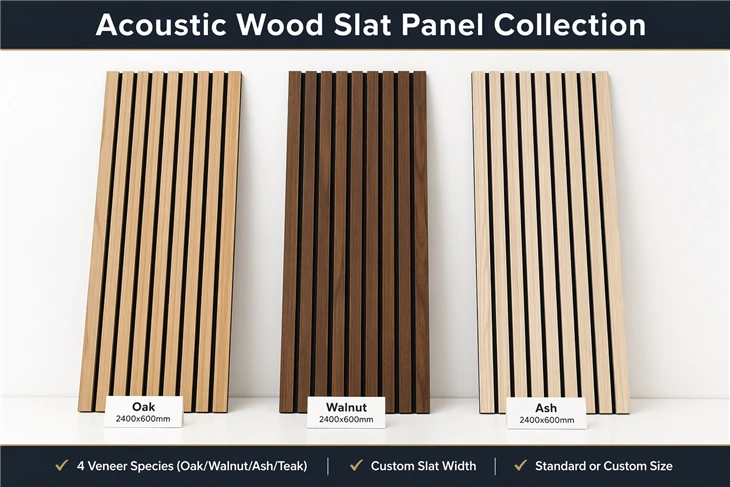

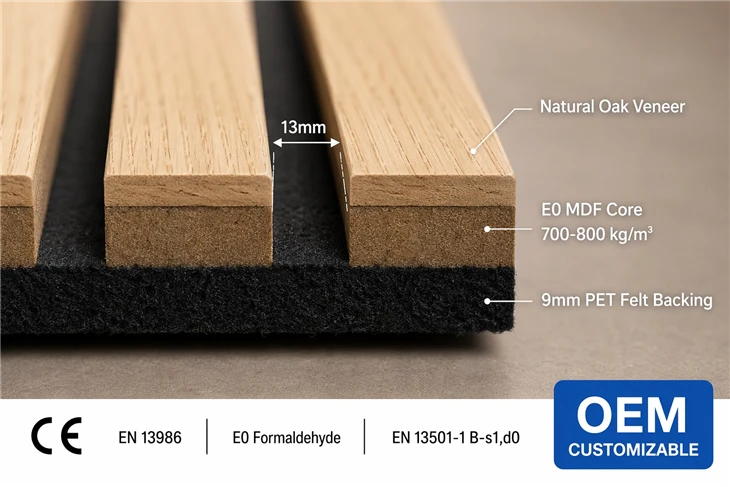

The MDF core runs at 700-800 kg/m3. The face is real wood veneer: oak, walnut, ash or teak. Not printed. Not laminated. Not a wood-effect film stretched over plastic. Sand the edge of a sheet and you still see wood. This is the difference between an acoustic wood slat panel and a decorative panel that merely looks like one.
When a fitter opens the carton on site, they get four sheets. Each one PE-wrapped with corner protection. No loose slats, no edge damage from transit.
How It's Built: Real Veneer, Pneumatic Staples, No Glue
We fix the slats to the felt with pneumatic staples, not glue and not heat press. The staple gun fires through the MDF face into the PET felt backing. Staple pitch is set for each veneer width and checked on the line; every head sits below the veneer surface, invisible after finishing. Fast. Clean. Done on our floor.
Every production batch goes through a dimensional tolerance check (±0.5mm), a visual surface inspection, felt density verification and random acoustic spot-testing. Batch rejection records are maintained and available for audit. Raw materials are traceable: MDF from certified mills, PET fibre from a GRS-tracked supply chain.
The panel is CE certified under EN 13986:2004+A1:2015. Certificate SC-PSC-4-2026-06-53, issued by Certification Center LTD, Riga, Latvia - an EU notified body.

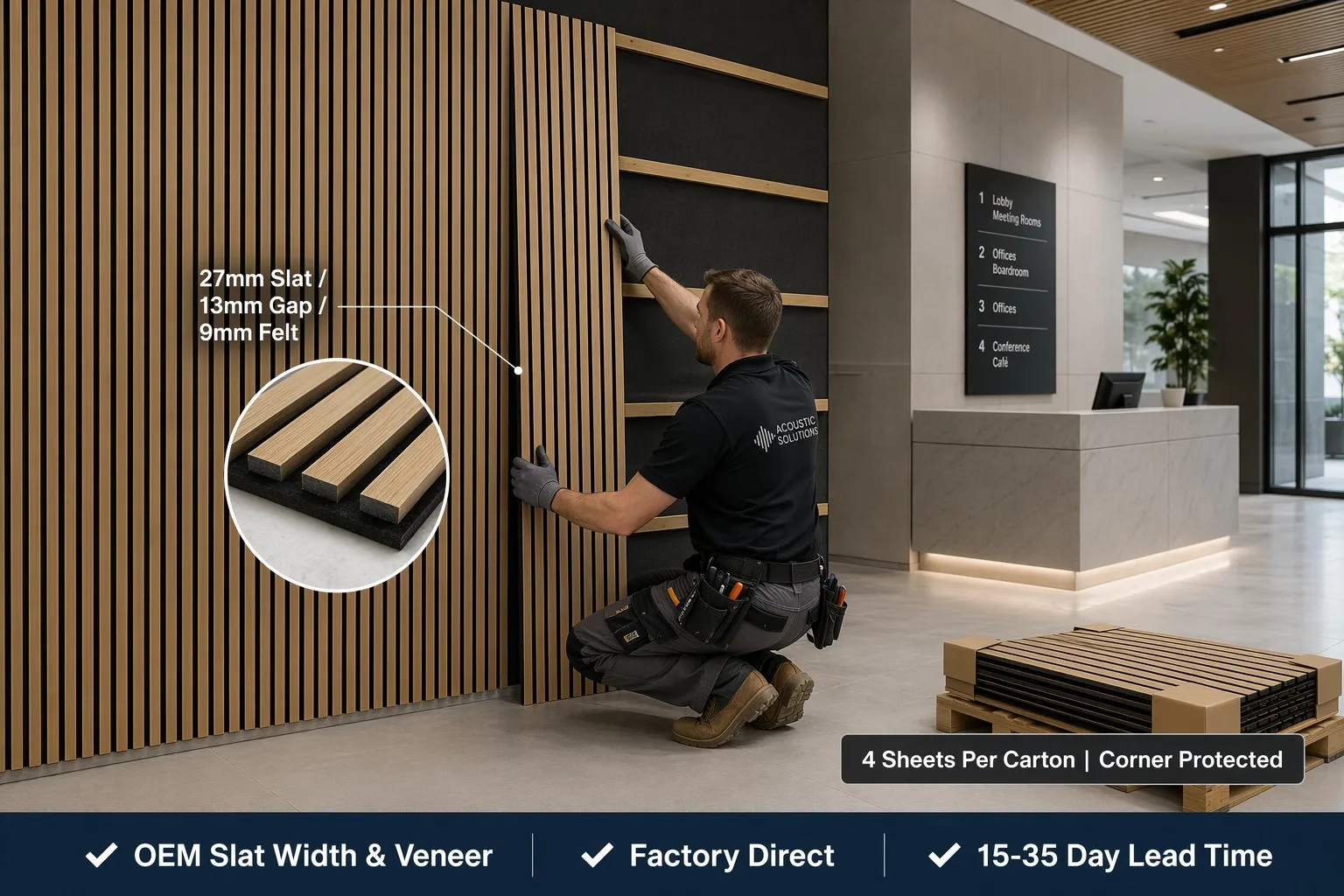

The Four Installation Mistakes That Kill a Job
The most common failure is not the panel. It is the substrate. We have seen jobs where the fitter glued sheets directly onto fresh plaster. The moisture in the plaster wicked into the MDF slats. Within three weeks the veneer started lifting at the edges, the gaps closed up as the MDF swelled, and the whole wall had to come down.
Another job: a specifier ordered 300 sheets for an office fit-out and skipped the flatness check. The 60cm wide sheets bridged a 4mm dip in the stud wall. When the afternoon sun hit, thermal expansion popped three sheets off the adhesive in one corner.
How to avoid a callback:
· Acclimatise the sheets. 48 hours minimum in the room they are going into. Stack them flat, never on edge.
· Check the substrate. Walls must be flat within 2mm over 2 metres. If they are not, batten first.
· Use the right adhesive. Solvent-free hybrid polymer. One cartridge per 2.4 sqm. Vertical beads at 200-250mm spacing.
· Leave a 5mm expansion gap at floor and ceiling. Cover it with trim.
Tell your fitter these four things. It will save you a callback on the first commercial job.

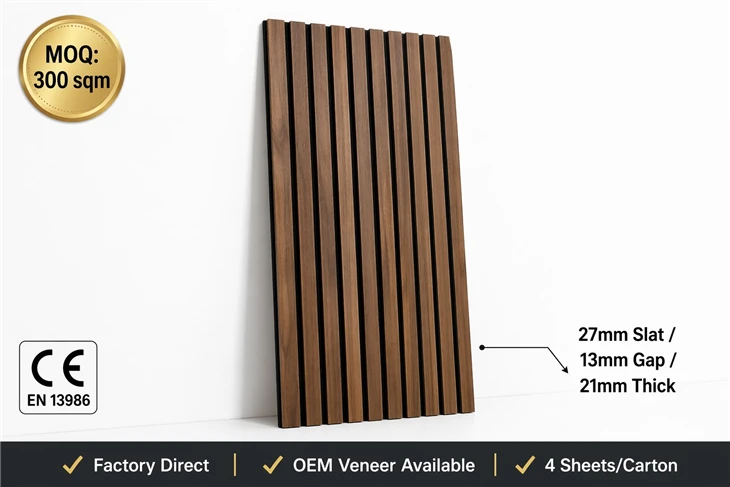

Technical Specs: Every Number a Specifier Asks For
The full specification, in one table:
| Property | Value |
|---|---|
| Slat Width | 27mm (standard). Custom on OEM order. |
| Slat Gap | 13mm. Black PET felt visible in gap. |
| Sheet Size (Standard) | 2400 x 600 x 21mm |
| Custom Sheet Size | Height up to 3200mm. Width up to 1200mm. Cut to spec. |
| MDF Core | Density 700-800 kg/m3. |
| Surface Veneer | Natural wood: oak, walnut, ash, teak. Melamine option available. |
| PET Felt Backing | 9mm thickness. Density 1500-1900 g/m2. |
| Weight | About 12 kg per standard sheet (8.5-10 kg/m2) |
| NRC (Direct Mount) | 0.50 - 0.60 |
| NRC (45mm Air Gap + Mineral Wool) | 0.85 - 0.95 |
| CE Certification | EN 13986:2004+A1:2015. Certificate SC-PSC-4-2026-06-53. |
| Installation | Direct screw through felt. Solvent-free hybrid polymer adhesive. Z-clip system. |
| Application | Indoor walls and ceilings. Commercial, hospitality, education, residential. |
| Packaging | Individual PE wrap. 4 sheets per export carton with corner protectors. |
| MOQ | 300 sqm per grade, per colour. |
NRC 0.50 to 0.95: What It Actually Means in Your Room
NRC is one number. Zero means a surface reflects all sound that hits it; 1.0 means it absorbs almost all. Our acoustic wood slat panels measure 0.50-0.60 direct-mounted to a wall, and 0.85-0.95 when installed over a 45mm air gap with mineral wool.
That range covers two common specs. Direct mount fixes a room that is merely live - open-plan floors, corridors, meeting rooms. The air-gap build is for spaces where the brief demands serious reverberation control: lecture halls, studio rooms, restaurant dining areas. Full test reports from ILAC-MRA accredited labs are available on request.
What an acoustic wood slat panel does not do is stop sound travelling through a wall. It absorbs reflections and cuts echo time inside a room; it is not a sound barrier between apartments or offices. If the brief is blocking transfer, the answer is mass and decoupling in the partition - the panel goes on the room side afterwards. Spec it for what it is and it will not disappoint you.
Where It Belongs - and Where It Doesn't

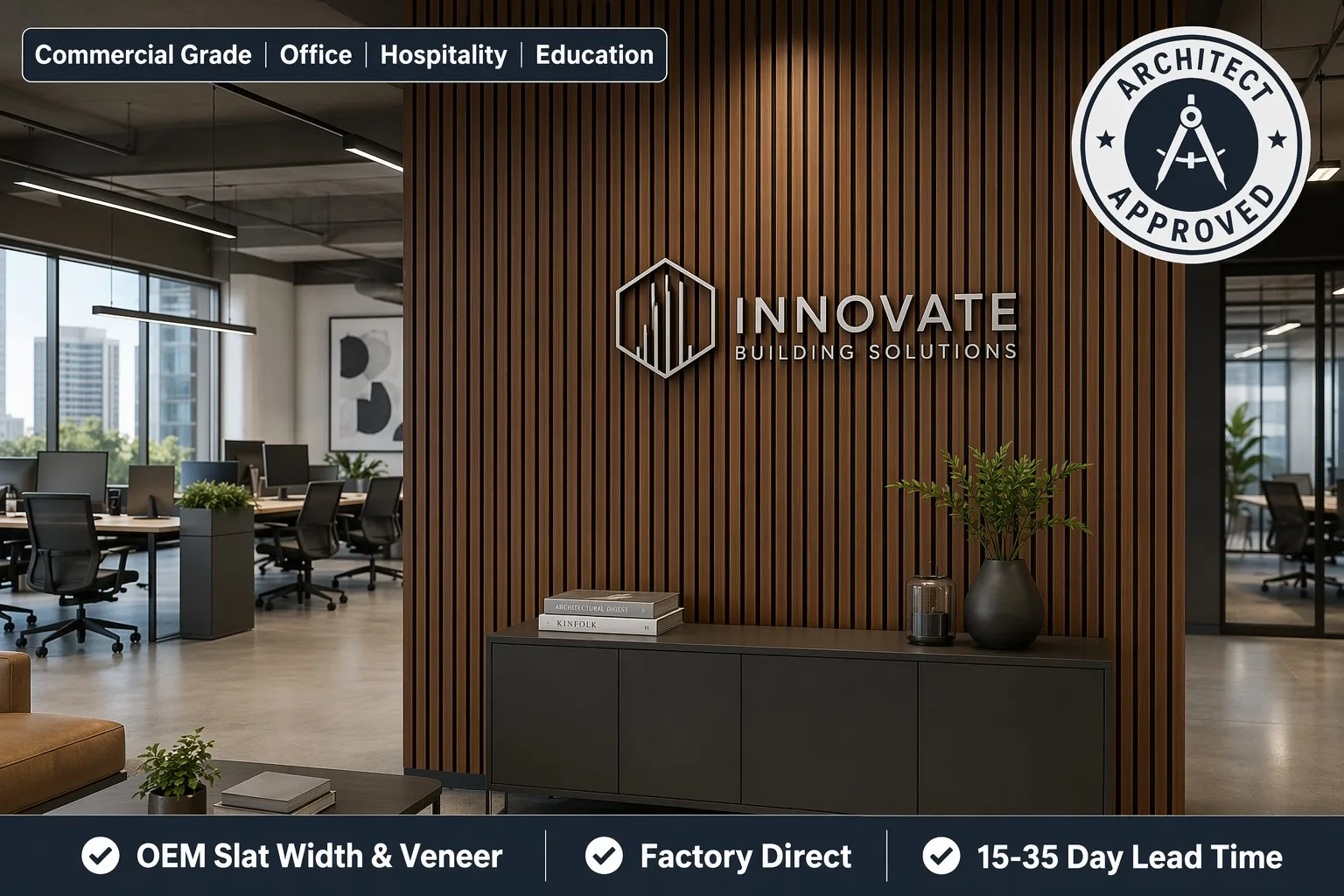

Not a living room weekend job. These sheets go into commercial builds: open-plan office floors where fifty people need to hear their own calls, hotel lobbies where the marble floor echoes every check-in, restaurant dining rooms where kitchen noise bleeds into seating, university lecture halls where the professor's voice hits the back wall and bounces.
Architects spec this panel when the brief says: cut RT60 below 0.8 seconds on a 200 sqm floor plate. They call us because the standard sheet fits the ceiling grid and the wall module without cutting - no waste, no fabrication delay.
Distributors in the UK, EU, US, Australia and New Zealand stock the oak and walnut finishes - those two cover about 70% of commercial orders. Ash goes to Scandinavian-fit projects, teak to hospitality, melamine to budget-sensitive education builds. Outdoor facades, wet rooms and party-wall soundproofing are outside this product's job.
See It Made: The Staple Gun, Not a Trading Desk
Watch our MDF slats being locked into the PET felt backing with a pneumatic staple gun. No glue. No heat press. Each staple head sits below the veneer surface - invisible after finishing. This is what holds the panel together when it goes up on a job site. OEM and ODM orders run on the same floor.
Video: Wood Slat Acoustic Panel - Pneumatic Staple Reinforcement Process, filmed on our factory floor.
The Compliance File: CE Certification
The acoustic wood slat panel carries CE certification to EN 13986:2004+A1:2015 under certificate SC-PSC-4-2026-06-53, issued by Certification Center LTD, Riga, Latvia - an EU notified body. Full test reports from ILAC-MRA accredited labs are available on request.
OEM Runs for Distributors: Veneers, Sizes, MOQ
OEM and ODM orders run on the same production floor as our own range. You specify the slat width, the veneer species and the sheet dimensions; we cut to spec up to 3200mm in height and 1200mm in width. Veneer options are oak, walnut, ash and teak, plus a melamine face for budget-sensitive projects.
MOQ is 300 sqm per grade, per colour. Packaging is an individual PE wrap per sheet and four sheets per export carton with corner protectors, pallets ISPM 15 heat-treated and strapped to a container loading plan. 20GP or 40HQ, out of Ningbo or Shanghai.
Lead time is 15-35 days depending on veneer and batch size, quoted against the production schedule at order - not a trading desk estimate. Incoterms: EXW, FOB, CIF. Ask for a sample first: standard size, freight collect, cost rebated when the order lands.
FAQ
What is an acoustic wood slat panel made of? +

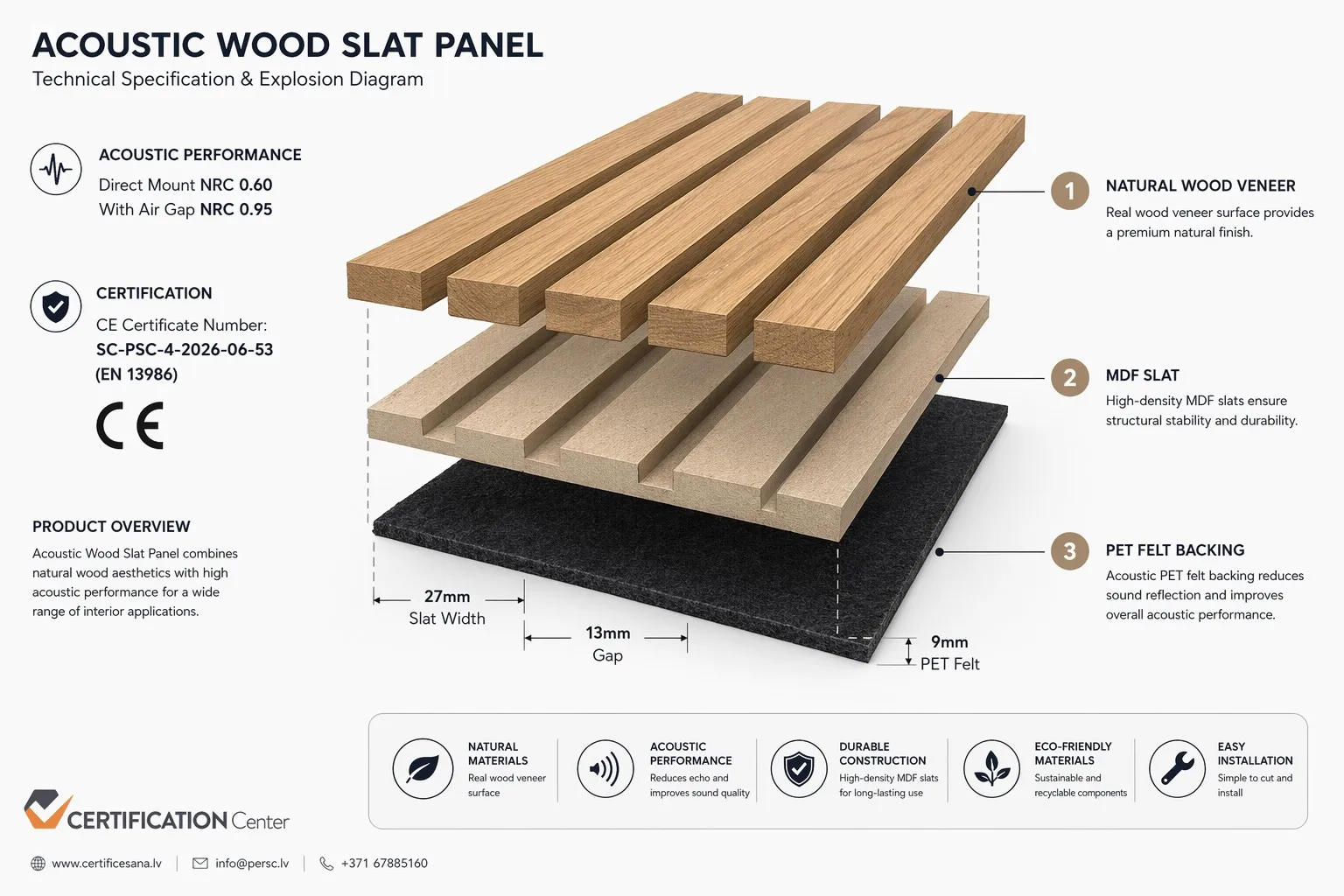

Three components: an MDF slat (700-800 kg/m3), a natural wood veneer face (oak, walnut, ash or teak), and a 9mm PET felt backing. The slats are pneumatically stapled to the felt - no glue, no heat press. A standard sheet is 2400 x 600 x 21mm and weighs about 12kg.
Do acoustic wood slat panels block sound or just absorb echo? +
They absorb echo and reduce reverberation inside a room; they are not a sound barrier. Direct-mounted the NRC is 0.50-0.60, rising to 0.85-0.95 over a 45mm air gap with mineral wool. For stopping sound transfer between rooms you need mass and decoupling in the partition itself.
Is the wood veneer real, or is it printed? +
Real veneer. Oak, walnut, ash and teak are cut from timber and laminated onto the MDF slat. It is not printed film and not a wood-effect wrap. Sand the edge of a sheet and you still see wood. A melamine face is available as the budget alternative.
What NRC can I expect, and how do I push it higher? +
Direct mount gives NRC 0.50-0.60. Installing the sheets over a 45mm air gap with mineral wool behind lifts it to 0.85-0.95. Full test reports from ILAC-MRA accredited labs are available on request.
Is the panel CE certified? +
Yes. The panel is CE certified to EN 13986:2004+A1:2015 under certificate SC-PSC-4-2026-06-53, issued by Certification Center LTD, Riga, Latvia - an EU notified body. Full test reports from ILAC-MRA accredited labs are available on request.
Can I order custom slat widths, veneers or sizes for an OEM project? +
Yes. OEM and ODM orders run on the same floor as our own range. Slat width is customisable, sheet height goes up to 3200mm and width to 1200mm. MOQ is 300 sqm per grade, per colour.
What is the MOQ and how are sheets packed for export? +
MOQ is 300 sqm per grade, per colour. Each sheet is individually PE-wrapped and packed four to an export carton with corner protectors. Pallets are ISPM 15 heat-treated, strapped to a container loading plan. Lead time is 15-35 days depending on veneer and batch size, shipping from Ningbo or Shanghai.
How should my fitter install acoustic wood slat panels on site? +
Three fixing methods: direct screw through the felt, solvent-free hybrid polymer adhesive, or a Z-clip system. Acclimatise sheets 48 hours first, keep walls flat within 2mm over 2 metres, and leave a 5mm expansion gap at floor and ceiling covered with trim.
Do acoustic wood slat panels actually work? +
They work on echo and reverberation - the job most rooms fail. A direct-mounted panel absorbs 0.50-0.60 NRC; over a 45mm air gap with mineral wool, 0.85-0.95. Rooms stop ringing and speech at 3 metres stops being work. They are not a sound barrier between rooms - that is a partition build question.
What type of wood is best for acoustic panels? +
Acoustics come from the PET felt backing and the air cavity - not the species. Choose the veneer on looks, hardness and budget: oak and ash for light commercial interiors, walnut for premium hospitality, teak for warm dark schemes, melamine where the budget is tight. All options sit on the same MDF core, so the acoustic numbers stay identical.
Why are acoustic slat panels more expensive than plain MDF panels? +
Four cost drivers: real wood veneer (species and grade set the price), the 9mm PET felt backing at 1500-1900 g/m2, low-volume OEM batches with per-batch QC (dimensional tolerance +/-0.5mm, batch rejection records), and slower pneumatic-staple assembly than glued board. Cut cost with standard oak or walnut, melamine faces, or container-volume MOQ instead of small runs.
About the Author
Written by J. Mao, Export Manager at Hangzhou Eastopo New Materials Technology Co., Ltd. J. Mao leads export specification for acoustic wood slat panel projects across the UK, EU, US, Australia and New Zealand, and has managed factory-direct acoustic panel supply since the line opened. Contact: mj@eastopo.com | WhatsApp +86 193 5725 8106
Not a Spec Sheet. A Production Order.
Tell us the slat width. The veneer. The sheet dimensions. The quantity and the delivery port. We will give you a lead time that reflects what is on the production schedule - not a trading desk estimate. You can ask for a sample first: standard size, freight collect, cost rebated when the order lands. One production floor. No middleman.
